Automated cow activity monitoring

Ovi-bovi cow monitoring system

Cow heat sensor detects the onset of cow estrus by continuous monitoring animal’s activity Ovi-bovi cow heat sensor continuously tracks animal’s activity and transmits the data for a distance of 2 to 5 km in license-free 433 MHz band From economic perspective, detection of ovulation in cows is a major challenge for modern dairy farming worldwide. The onset of ovulation is preceded by the period of estrus, or heat; it is time when cow behaves quite specifically and lends itself to visual identification. But with average farm size growing, visual heat detection becomes less and less reliable. Methods to detect estrus and ovulation in cows (ovulatio bovīna) as suggested by research community vary in a wide range between measuring progesterone concentration in milk (which provides golden standard in estrus detection but is prohibitively expensive) to spectral analysis of cow’s mooing (which is undeniably extravagant but not so well accepted by the industry).

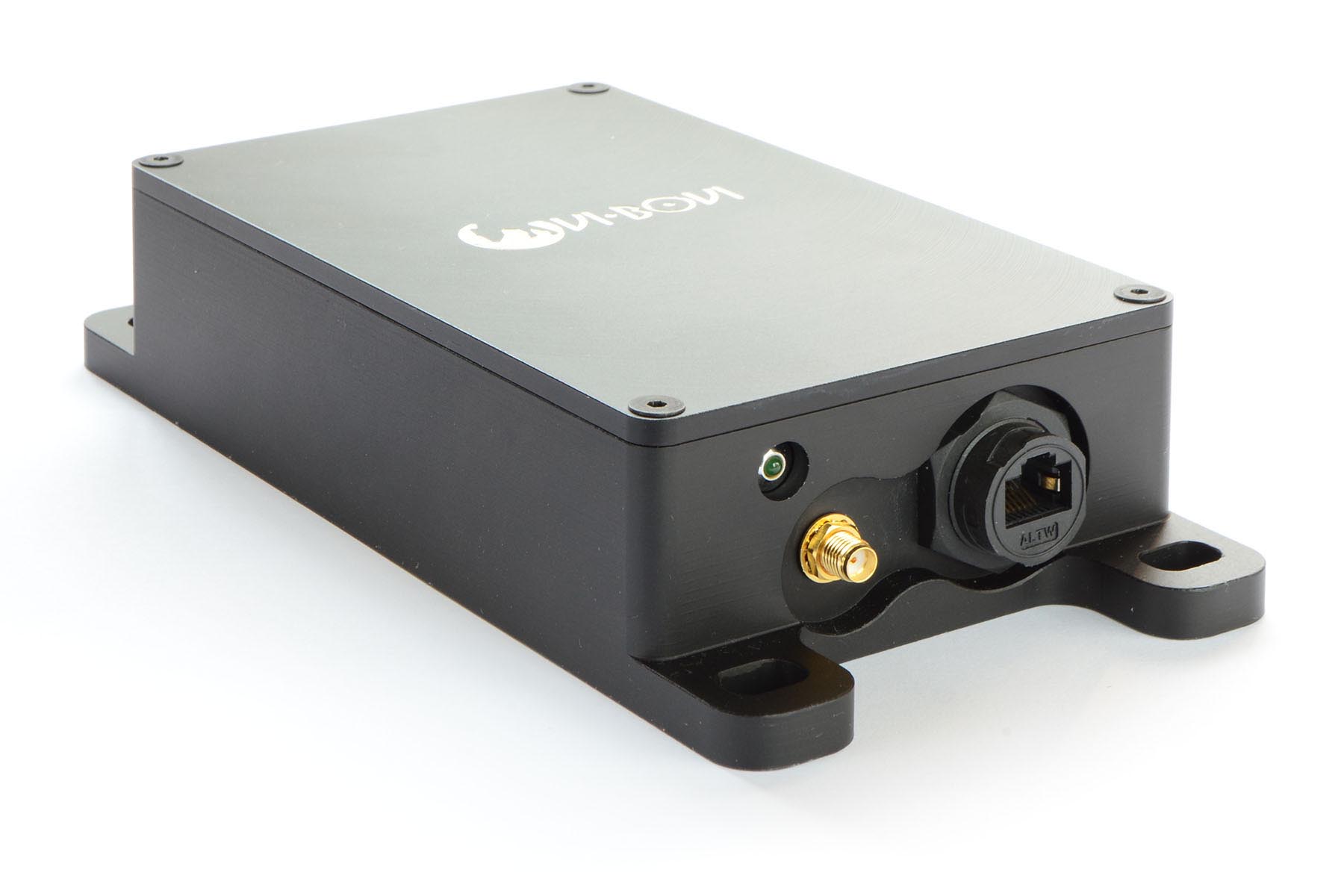

Ovi-bovi receiver in robust metal casing Ovi-bovi receiver in robust metal casing has two sockets: one for the SMA-type antenna connector, another one for the PoE cable Ovi-bovi tags on heifers in Chachkovo, Minsk region Ovi-bovi system is heighly efficient for heifers too, starting from 12 months age, as the ones pictured here (Chachkovo farm, Minsk region) For timely and accurate detection of estrus in dairy and beef cows and heifers we have developed wearable non-invasive collar-placed activity tags — bringing in our expertise in m2m wireless communications and building upon the experience of day-to-day usage of automated cow activity monitoring systems from world’s top brands (such as Dairymaster, Westfalia Surge, Lely Astronaut) on farms in Belarus. Our system includes:

  1. individual collar-worn wireless activity tags for cows;
  2. receiver with antenna supporting 2 to 5 km wireless range;
  3. software for cow-related data processing and in-browser visualization.

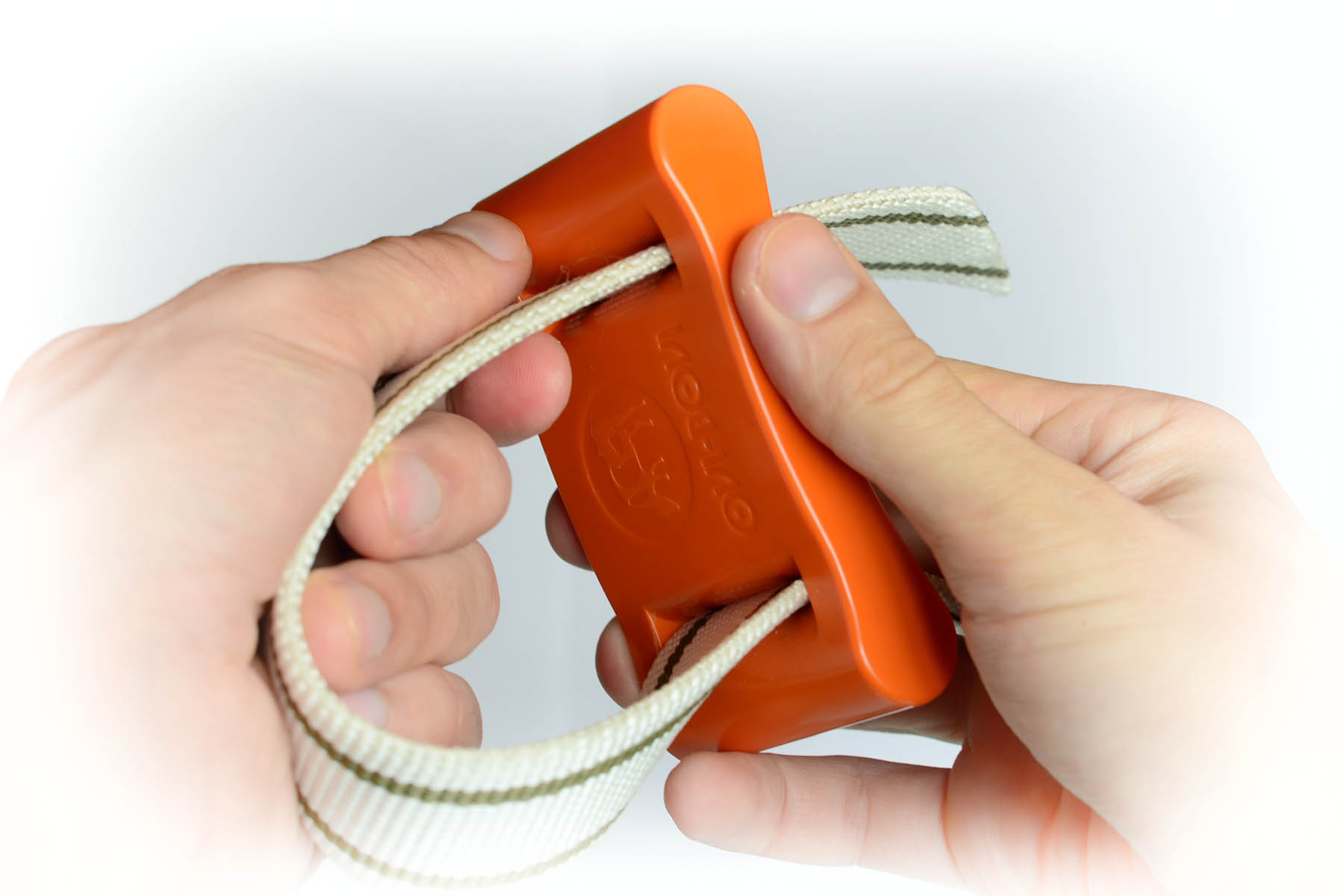

Ovi-bovi tag fits any standard 4 cm wide collar, no need to keep any specific position and orientation

Ovi-bovi tag fits any standard 4 cm wide collar — no need to keep any specific sensor position and orientation. Expected battery life of each Ovi-bovi tag is 10+ years; if necessary, a tag can be swapped from a cow to another cow anytime, with the new cow ID associated with the tag’s ID in the database. Cow activity data is transmitted by the tags every 15 minutes in five-minute chunks over 5+ km from the tags to the receiver (actual range is dependent on receiver antenna elevation, type of terrain and other details; in-the-field measurements are advised before installation if range is critical).

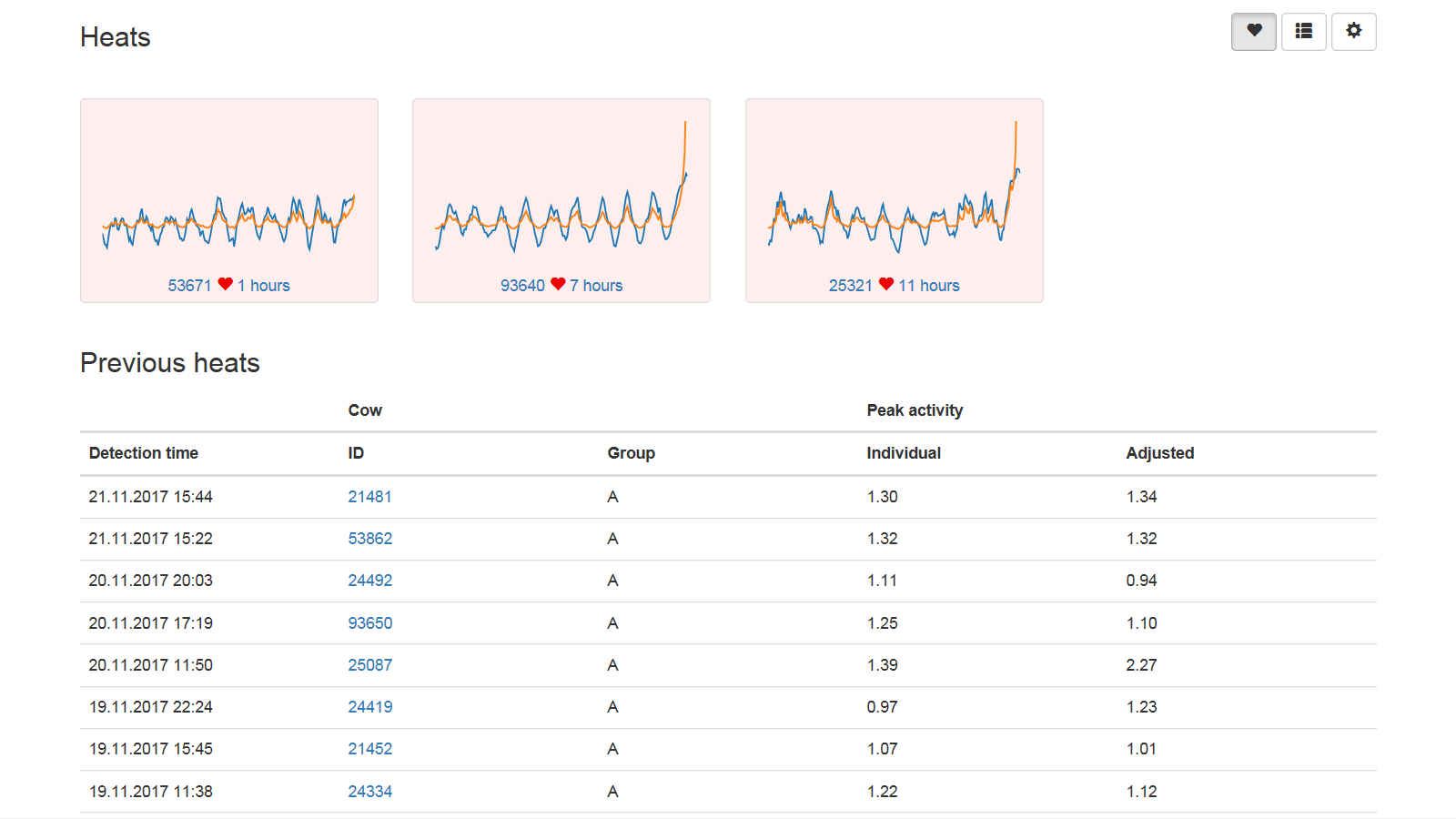

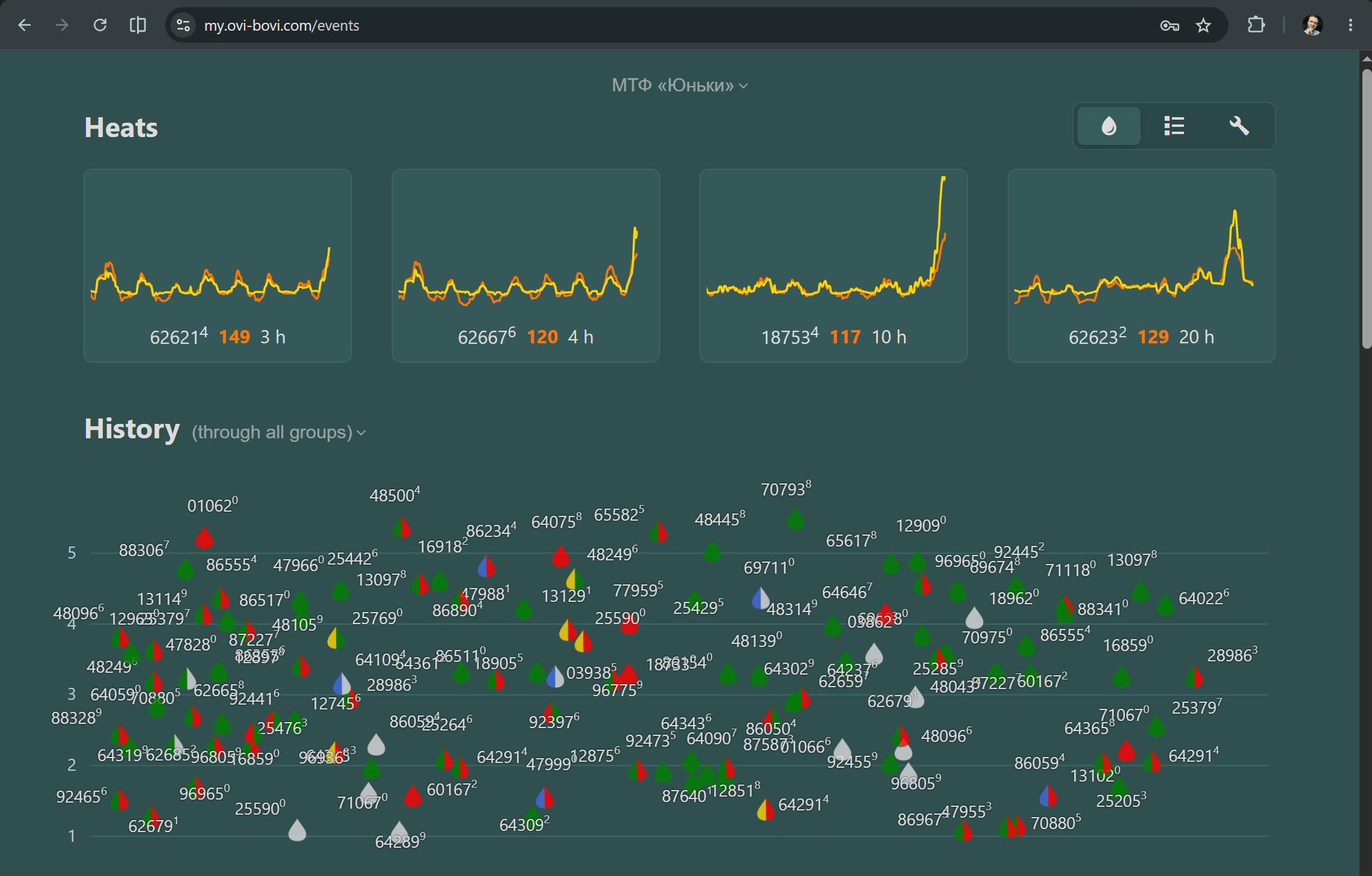

When in heat, a cow shows increased activity which allows to determine estrus event automatically. Once the heat (or abrupt activity drop which can signal cow illness or just a lost collar) is detected by the software, farm staff is e-mailed and alerted by SMS immediately. Cow in heat as determined by the system appears with its activity plot preview in the Heats section of the Ovi-bovi web application. For example, this screenshot shows two well-developed heats for cows №93640 and №25321 detected 7 and 11 hours ago, respectively, and one just in the beginning, for cow №53671:

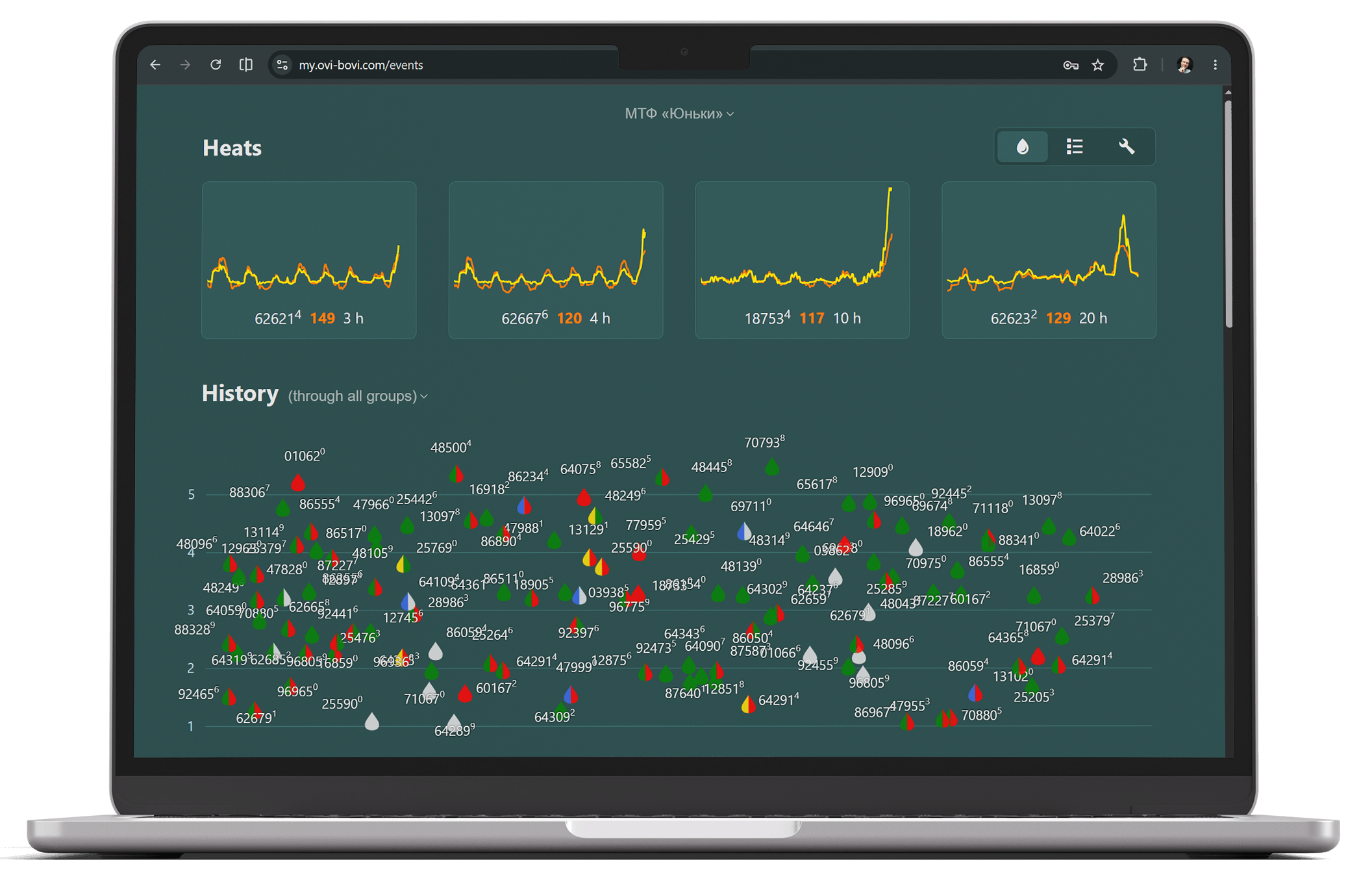

Ovi-bovi app screenshot: the Heats section

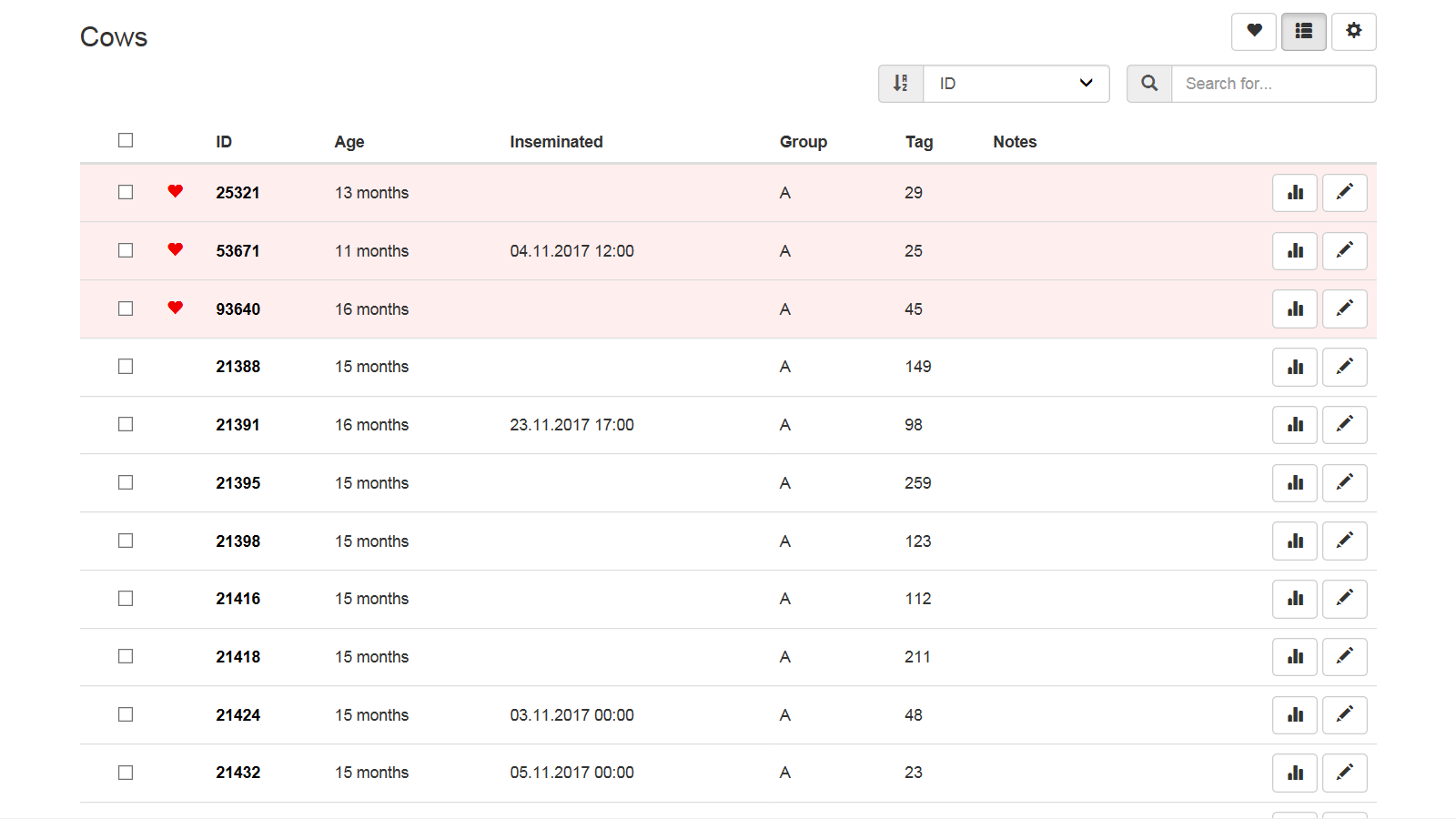

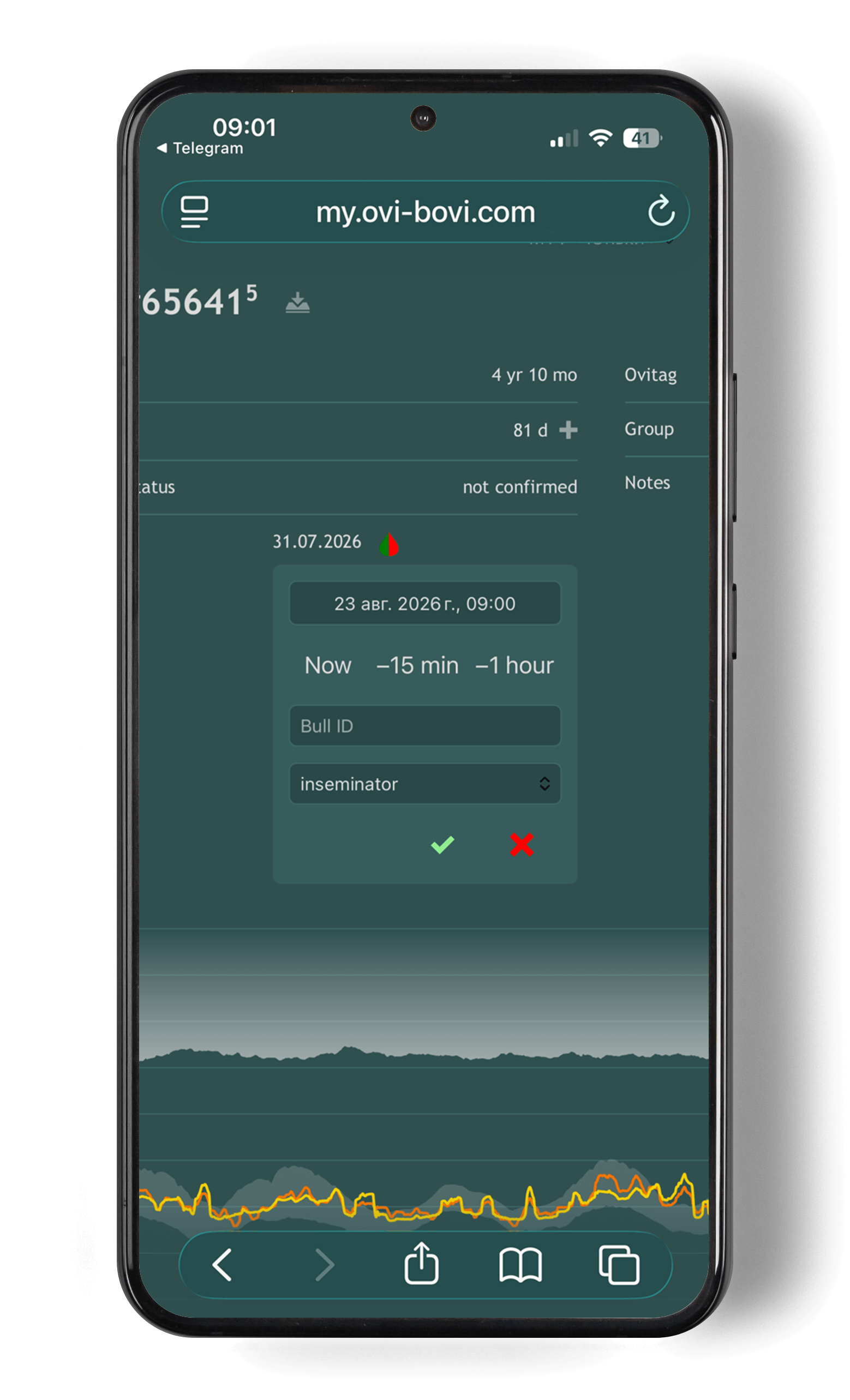

Under activity previews of cows in heat we have a table with all previous heats for reference. All animals in the database are displayed under the Cows tab; those currently in heat are pulled up in this table and stay on top until inseminated but no longer than 24 hours (as well as their thumbnails in the Cows section):

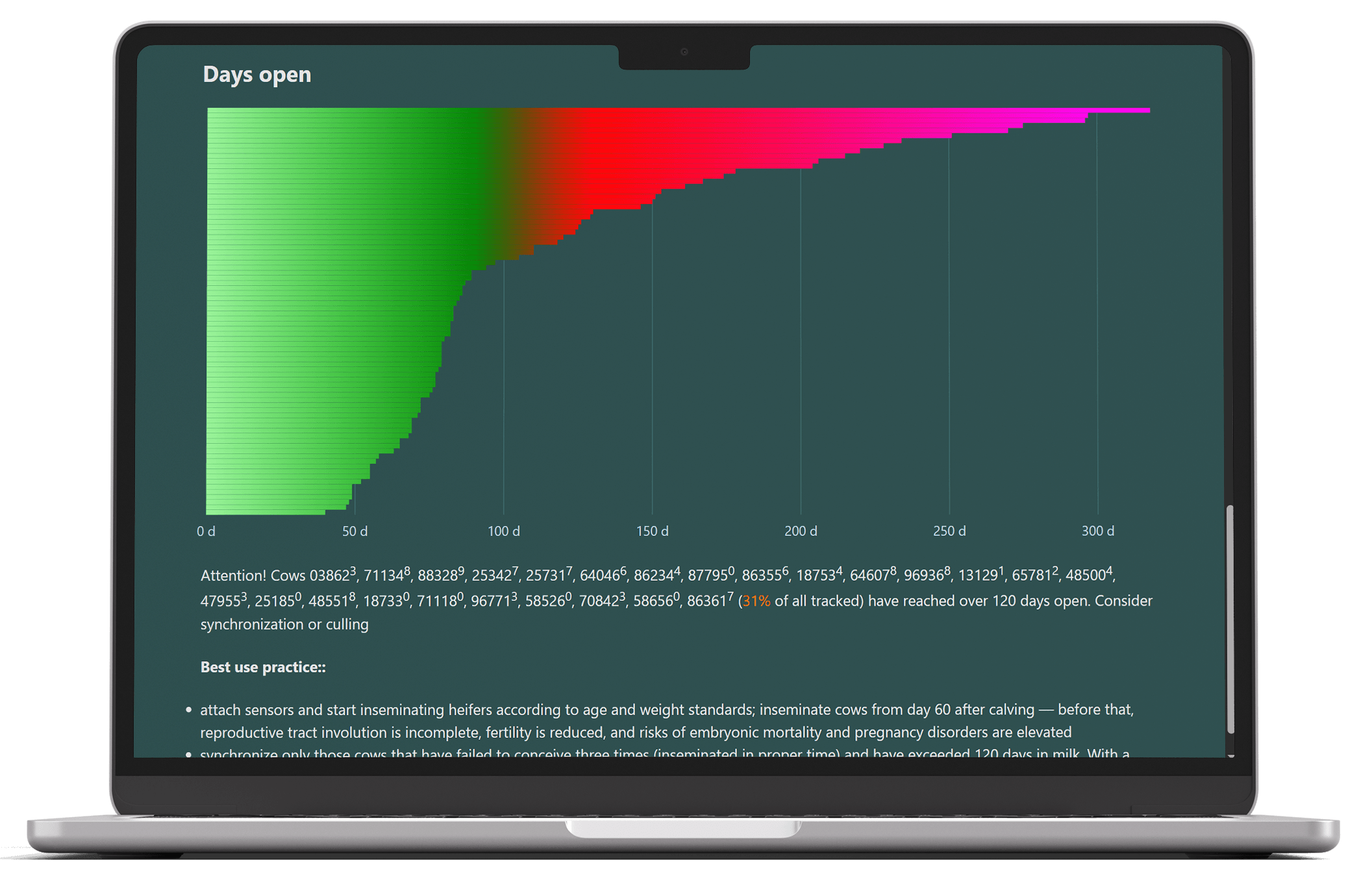

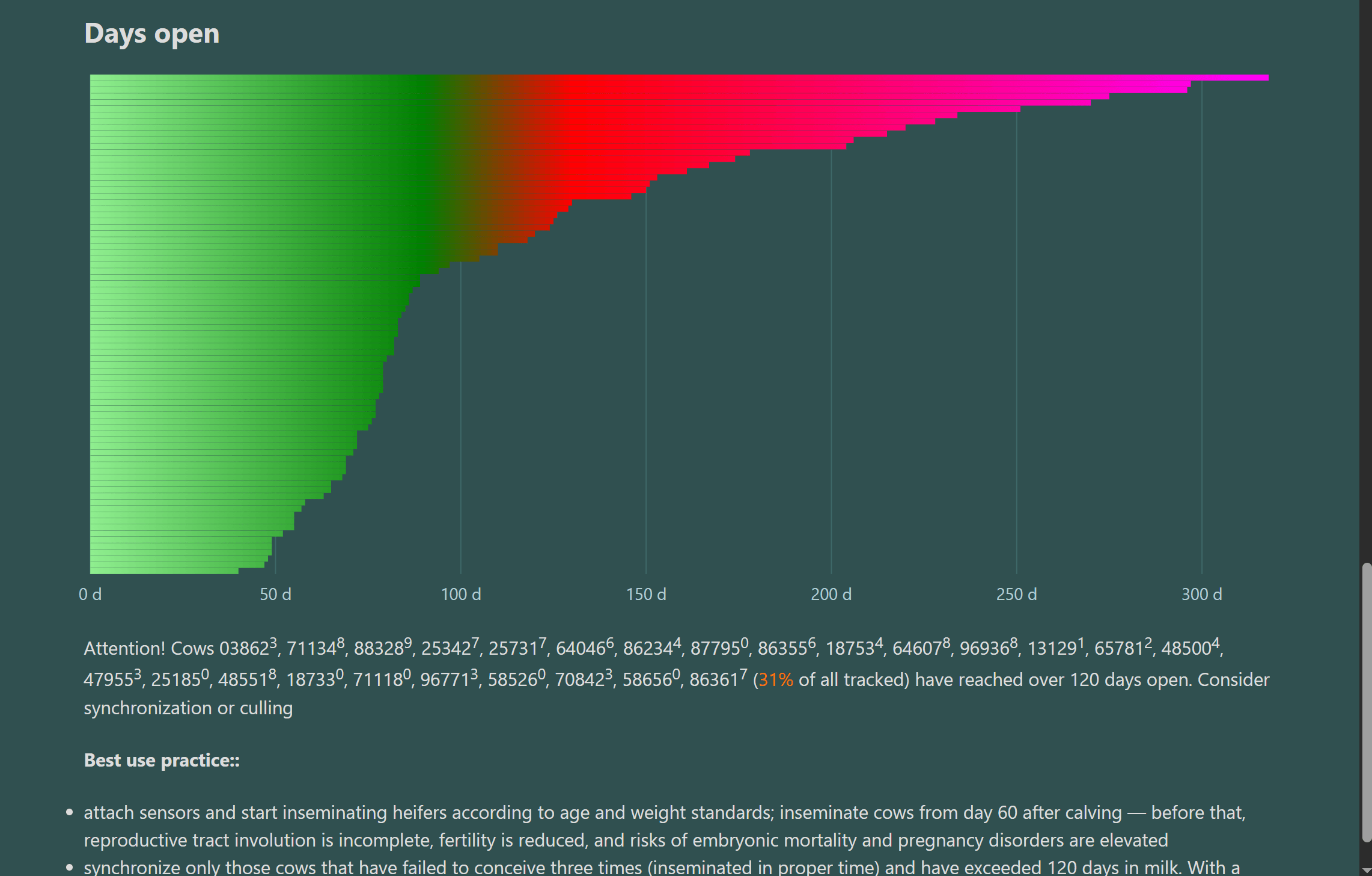

Screenshot from Ovi-bovi app: herd overview page in table form

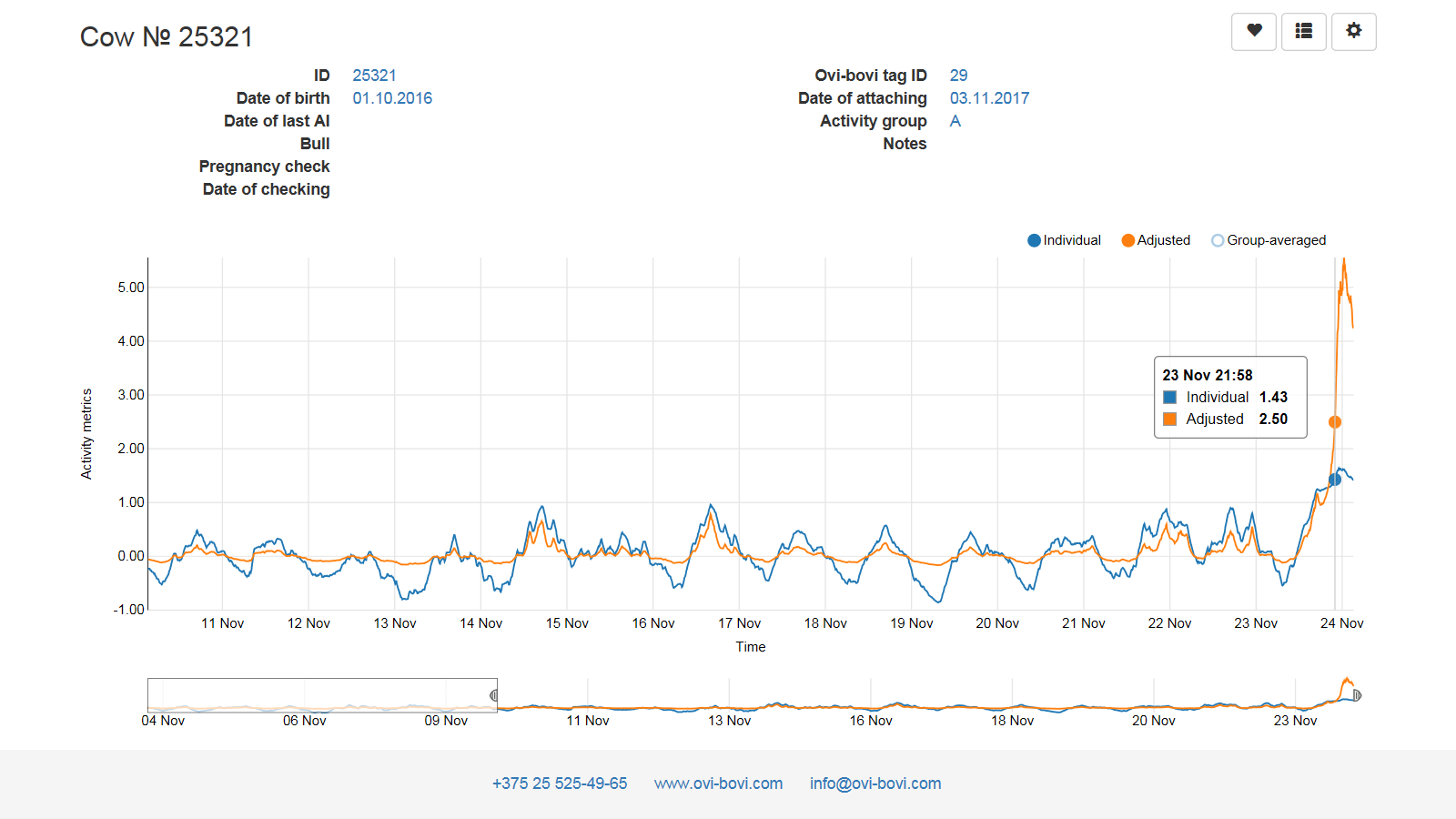

Activity data for each cow with a 5-minute resolution is stored on the server and can be accessed and visualized by the user through a single click on that cow in the app. For example, click on cow №25321 (actually heifer; in the screenshots above she is marked as being in heat) to see her details:

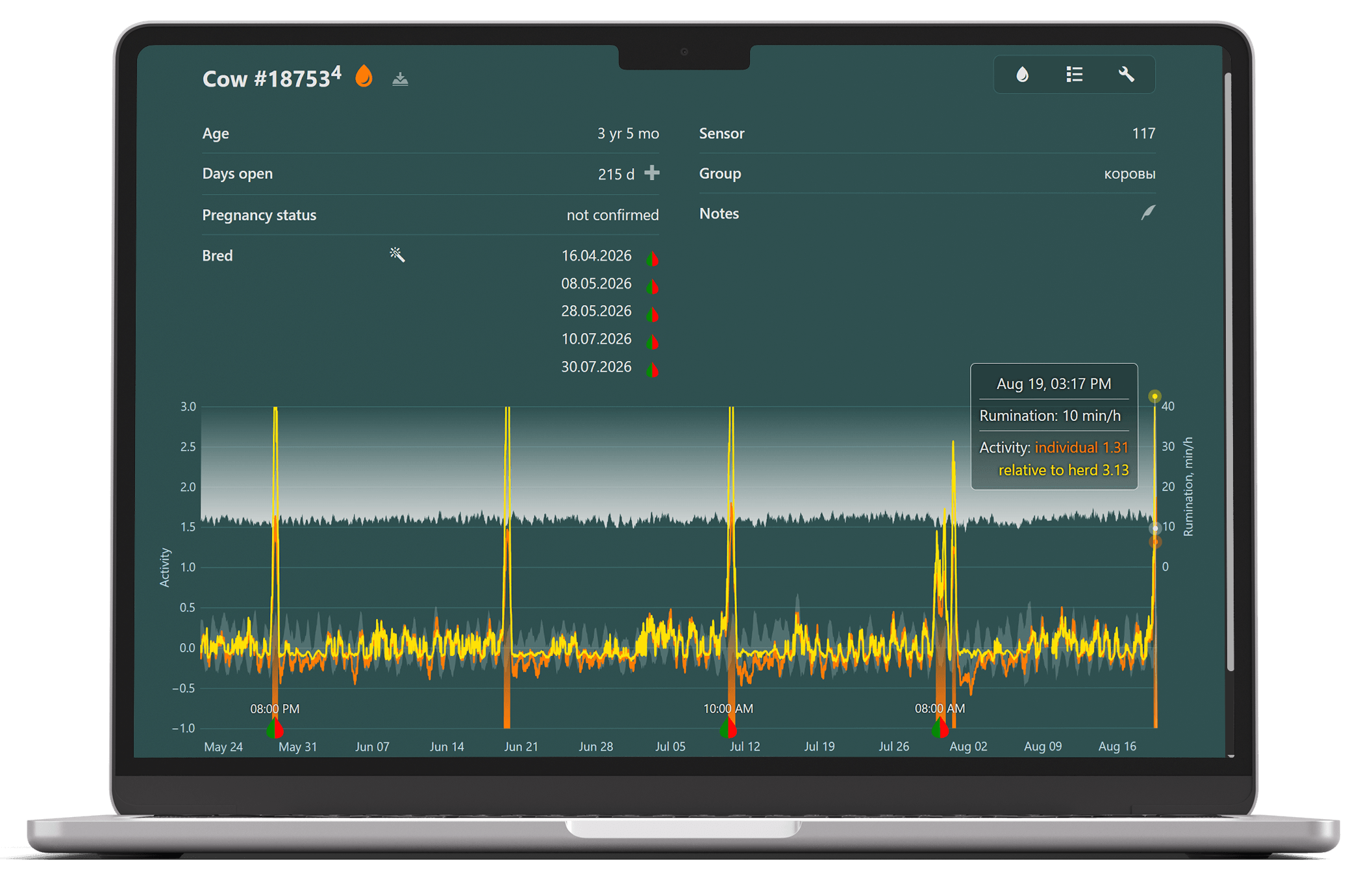

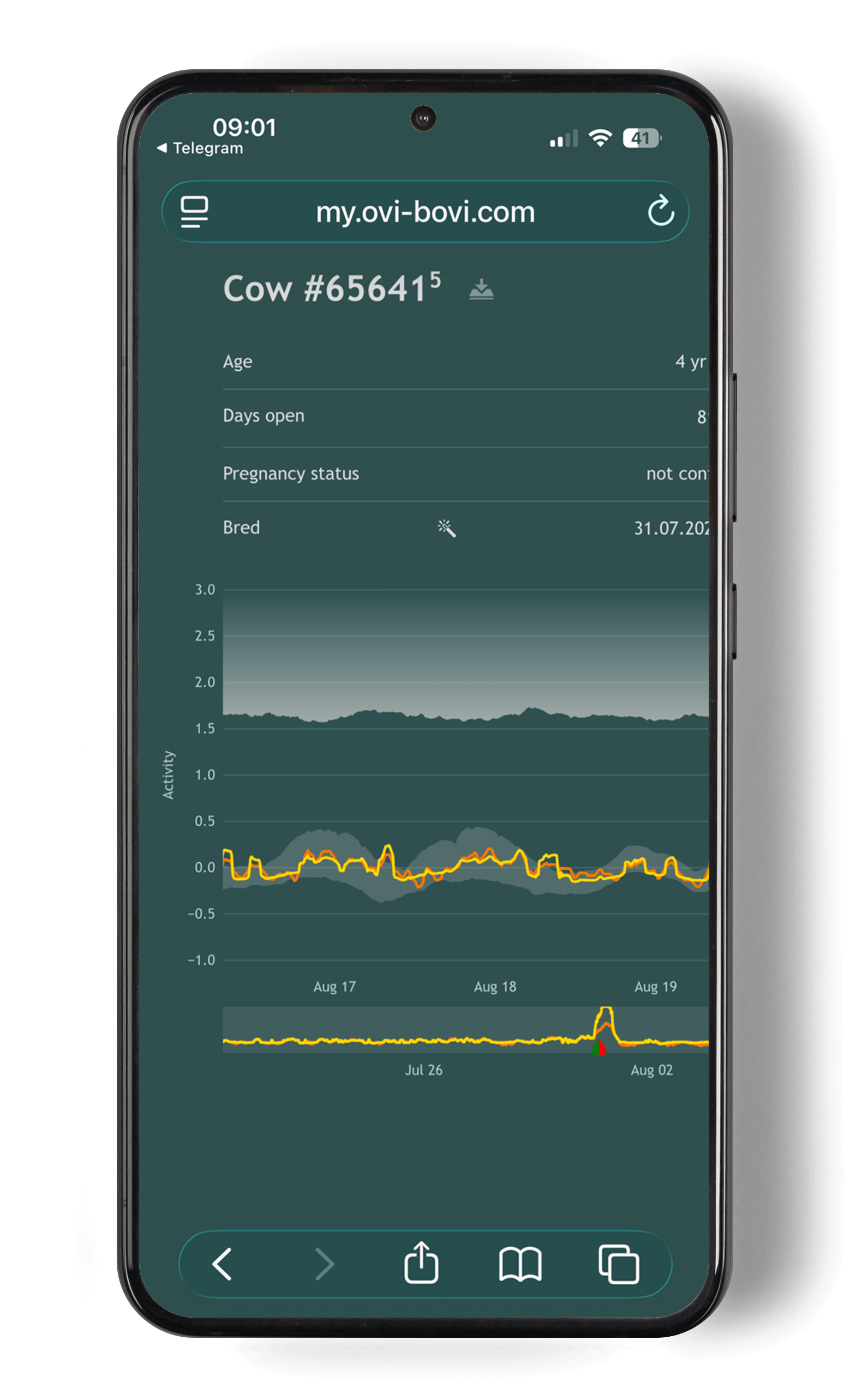

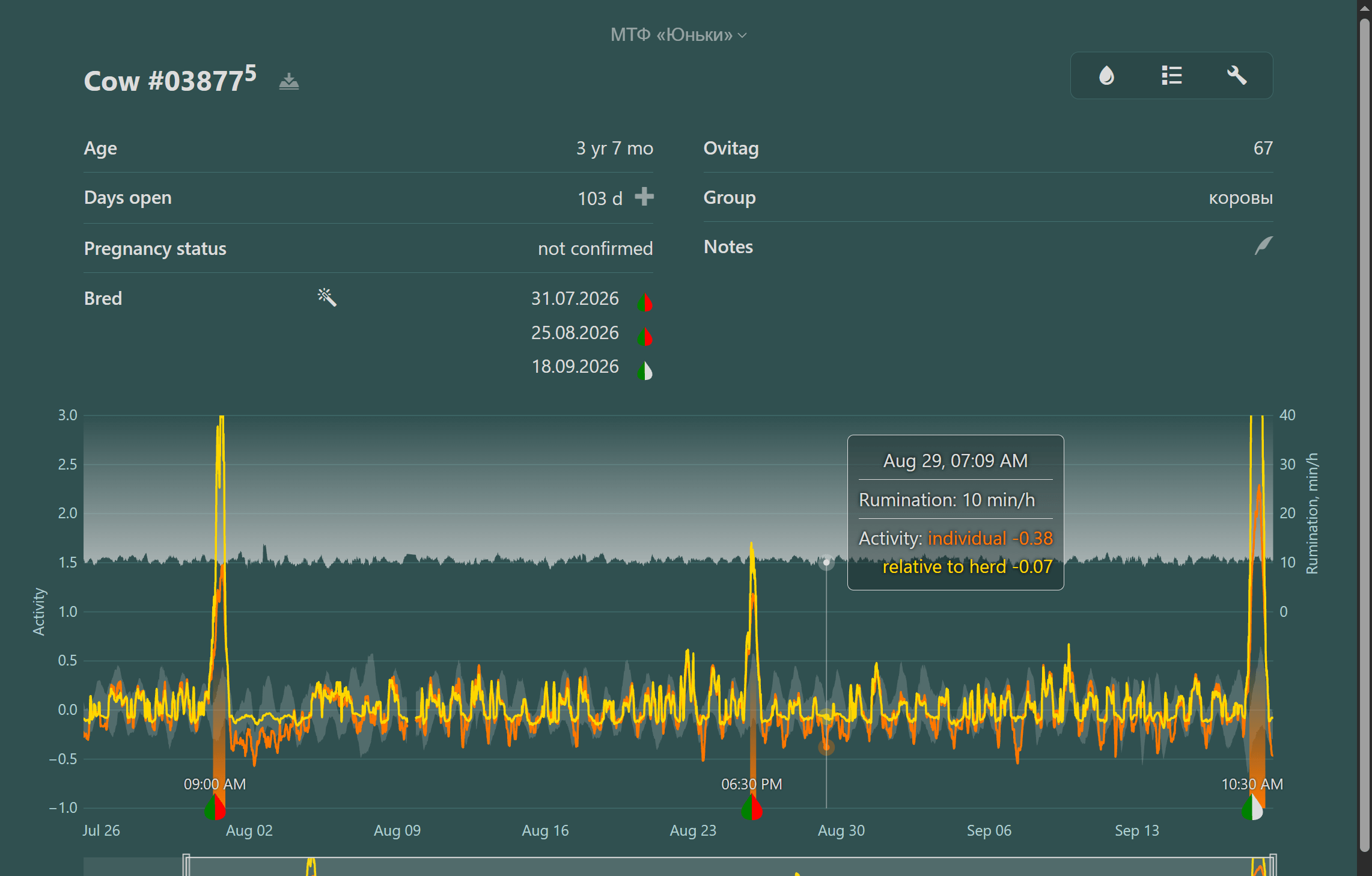

Screenshot from Ovi-bovi app: details on a particular cow

Ovi-bovi system is manufactured according to the registered specification BY 191640612.001-2016 and conforms to the requirements of Eurasian Customs Union technical regulations 020/2011 on electromagnetic compatibility of equipment, declaration № BY/112 11.01. ТР020 003 20945. Upon request our system can be integrated with other accounting and statistics programs into a unified farm management automated system.

In addition to the main longrange radio, Ovi-bovi tags have NFC chips with ISO 15693 (13,56 MHz) radiointerface readable by any device complying to ISO 15693 which you might have on the farm. Upon touching the tag with any NFC-enabled smartphone you will see the web-page of the cow linked to that tag being opened automatically. You can also switch tag’s default activity tracking regime to accelerometer raw data logging and back and do even more tweaks if needed.

Why heat alerts are urgent

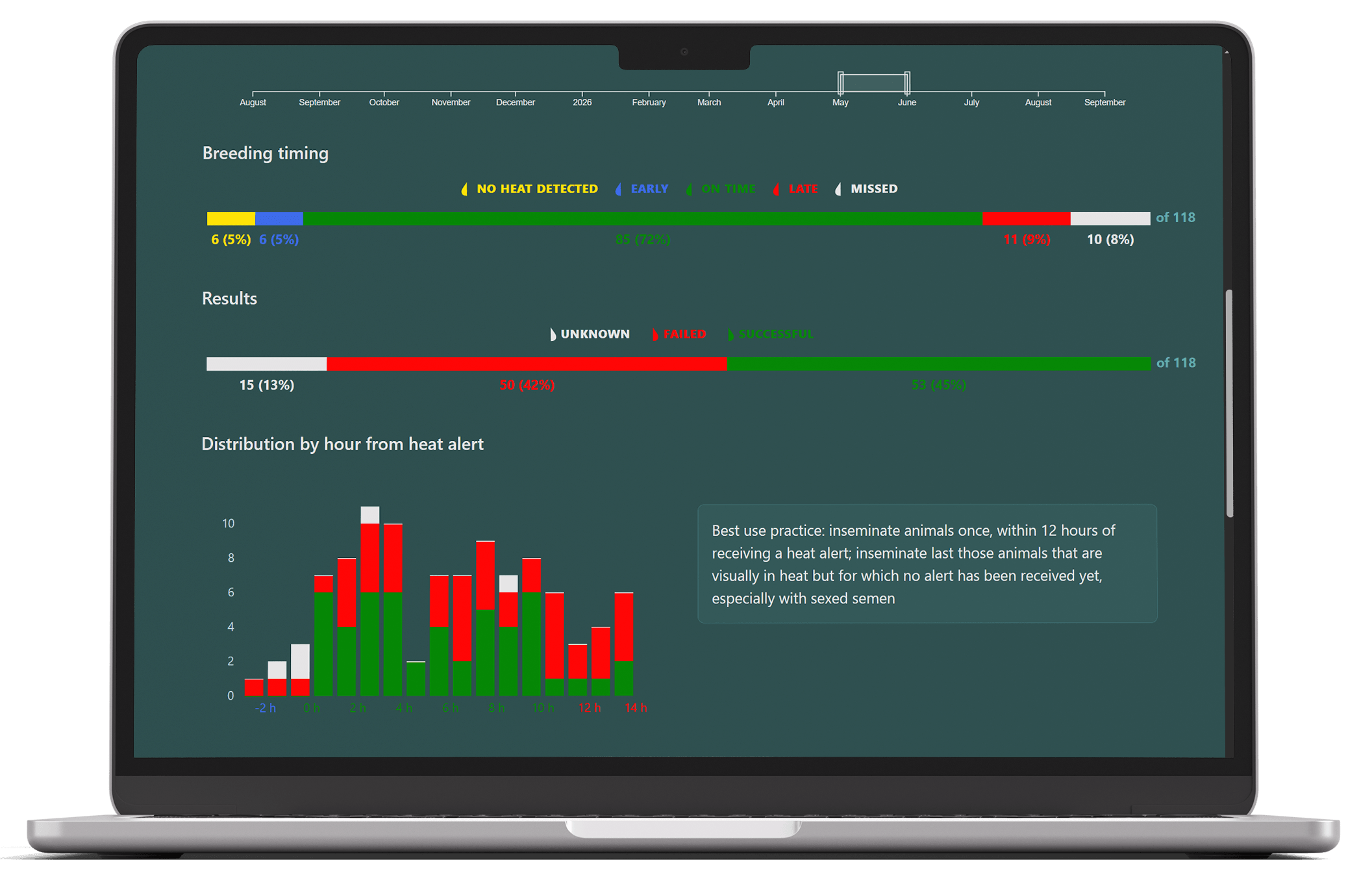

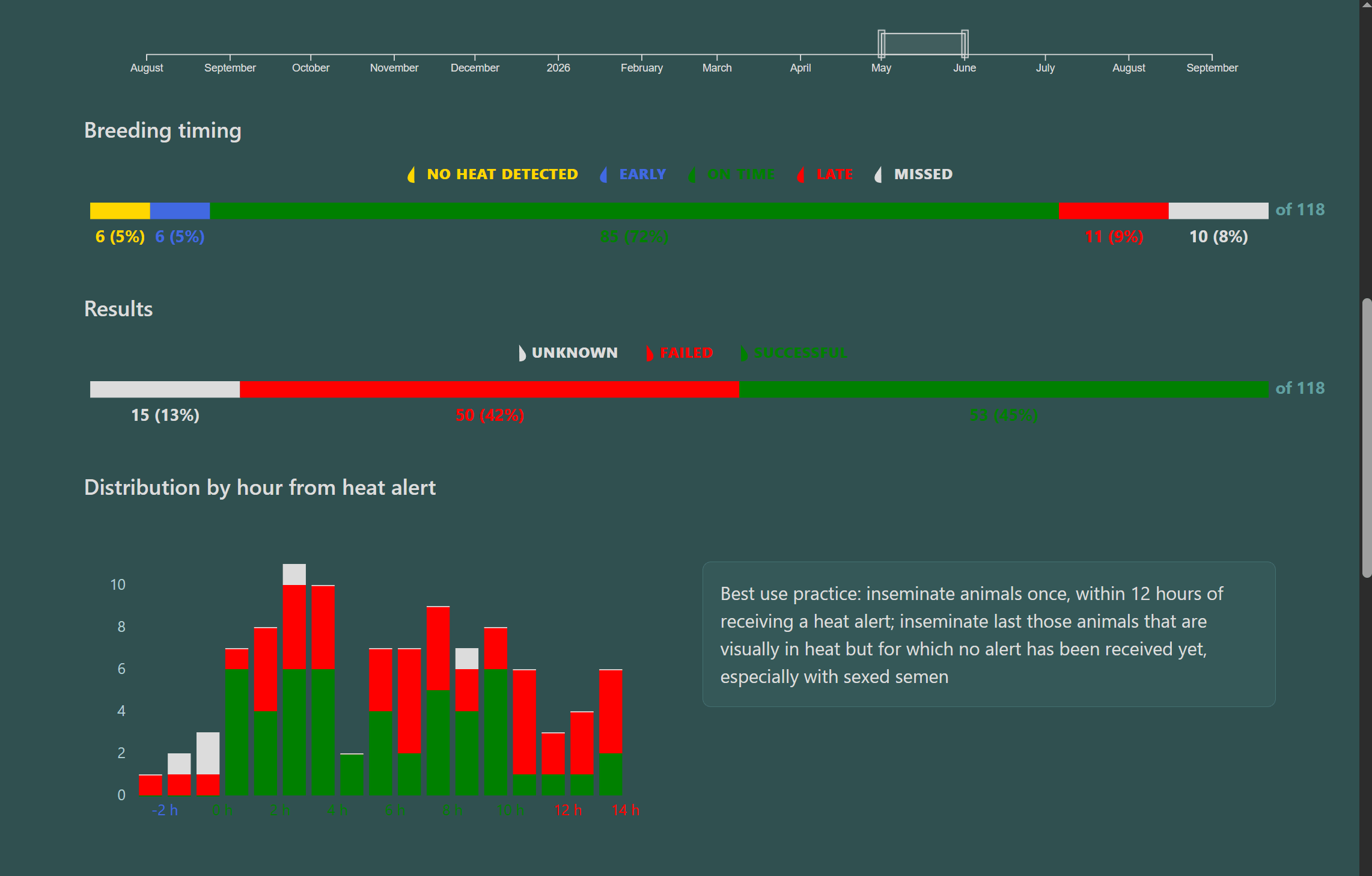

Timely notifying inseminator about the onset of a cow’s oestrus is a key to achieving high insemination rate on a farm. Scientific research shows it may take as little as 8 to 16 hours from the onset of cow heat to the moment of her insemination for the best resultsFor extensive discussion with references to most recent studies see J.B. Roelofs, “Estrus detection tools and their applicability in cattle: recent and perspectival situation,” Animal Reproduction 12 (2015) 498–504. In the paper by S.T. Nelson et al., “Automated activity monitoring and visual observation of estrus in a herd of loose housed Hereford cattle: Diagnostic accuracy and time to ovulation,” Theriogenology 87 (2017) 205–211, even tighter schedule is propelled for beef cows: AI should be performed approximately 6 hours after detection of estrus to maximize reproductive performance. Further research on optimal insemination timing is clearly needed.; worse, none of activity tags can detect the onset of heat at that very moment, so even less time is left for insemination from the moment the heat is detected.

One reason for this can be seen from activity plots: in heat, aggregated cow activity rises gradually, so that it takes about 3 hours for the curve to reach activity level of one standard deviation, at which instance the onset of heat can be determined reliably, after passing through the half-threshold of 0.5 std deviation, i.e. after the moment the heat actually started. Furthermore, any type of running-time data aggregation and smoothing (such as calculating the moving means needed to determine heats as spikes over the “normal” activity level) induces phase shift in the smoothed data. This shift depends on the type of averaging (simple or weighted) and roughly equals half the averaging interval: for example, with 10-hours simple averaging the curves lag behind actual activity pattern by 5 hours. Thus up to 8 hours may be needed for accurate and reliable automated detection of estrus after its onset,Attempts to shorten this interval invariably lead to sufficient increase in the number of false-positive heat alerts — a problem encounted with many commercial activity detection systems. so that no more than 8 hours more are left for insemination — given the signal from the tag is obtained immediately.

When designing Ovi-bovi system we made sensors capable of communicating with the receiver on a 24-hour basis, followed by immediate data processing and automated sending of cow heat or health alerts via SMS and e-mail to inseminator, veterinarian and other registered users. Automatically and in time — not waiting till cows show up at the parlor to get their tags scanned — you are alerted if a cow is in heat or on low activity.

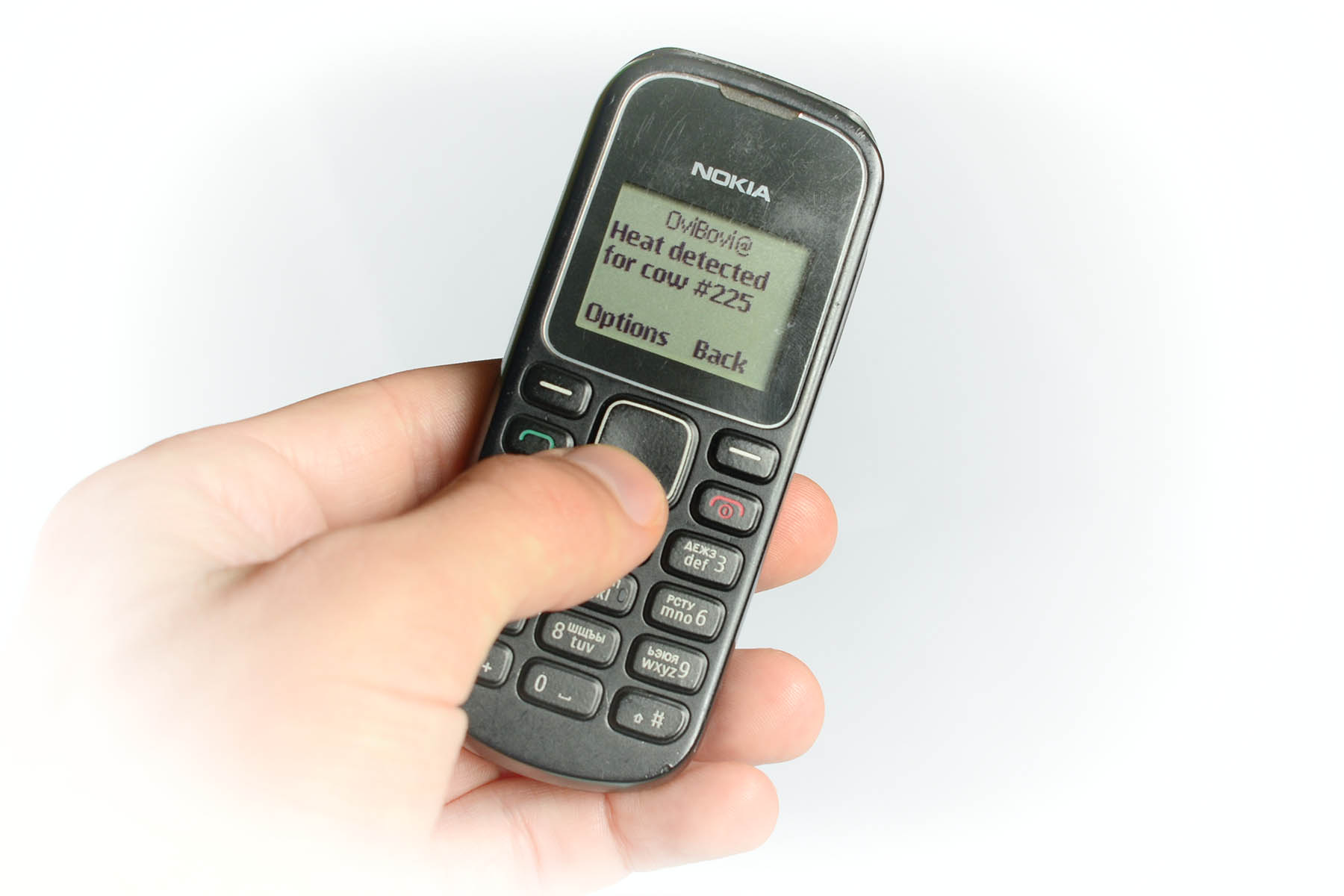

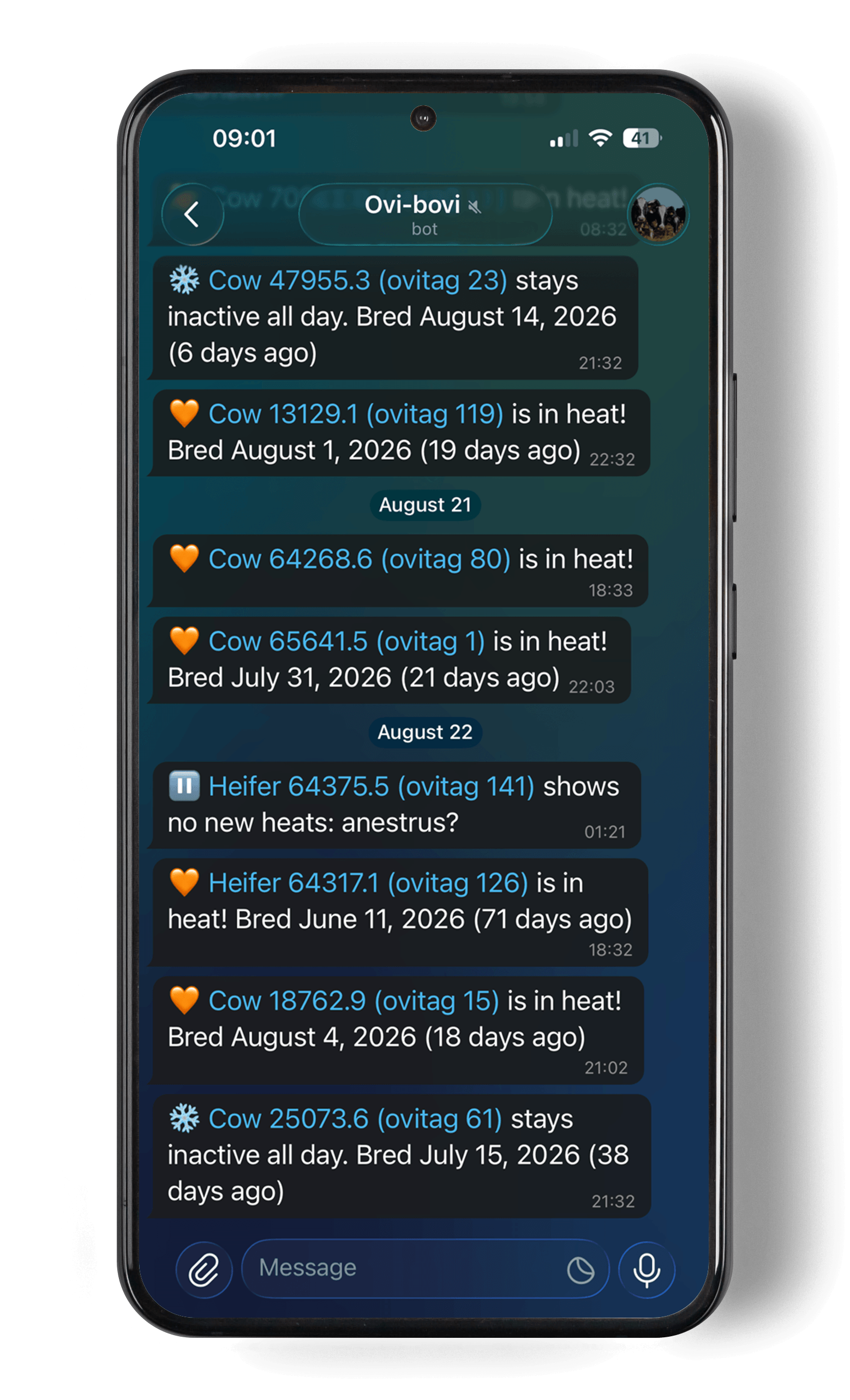

Automatic cow heat alert received via SMS

Technical specifications

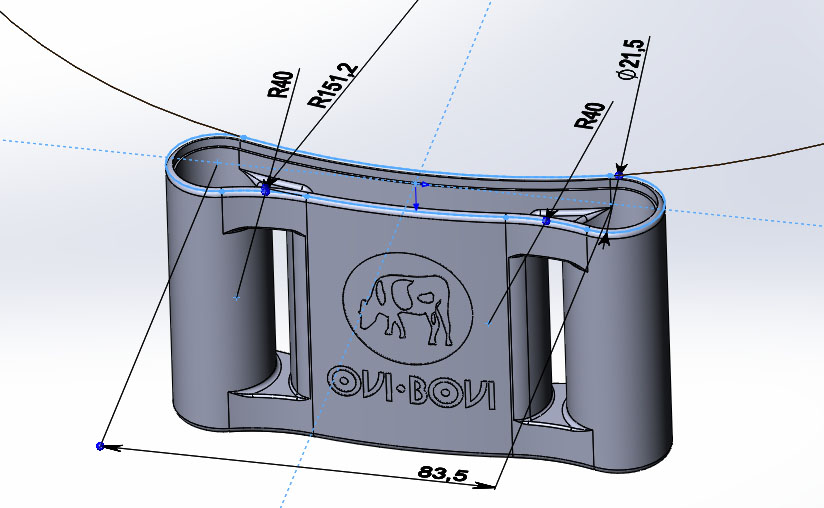

Ovi-bovi tag drawing By design, Ovi-bovi tag sits perfectly on any collar of standard width of 4 cm

Tag weight and size90 g, 105 mm × 60 mm × 22 mm
Radio frequency band433.05…434.79 MHz
Tag’s peak emitted power10 mW
Wireless data transfer rate2.4 kbps
Wireless operating range2…5 km
Battery life10 years
Operating temperature−20…85°С
Ingress protection ratingIP67
Number of tags supportedunlimited
Tag calibration period1 day

Downloads

Standard offer for 100 tags

Ovi-bovi user’s guide

Ovi-bovi tags reprogramming guide
